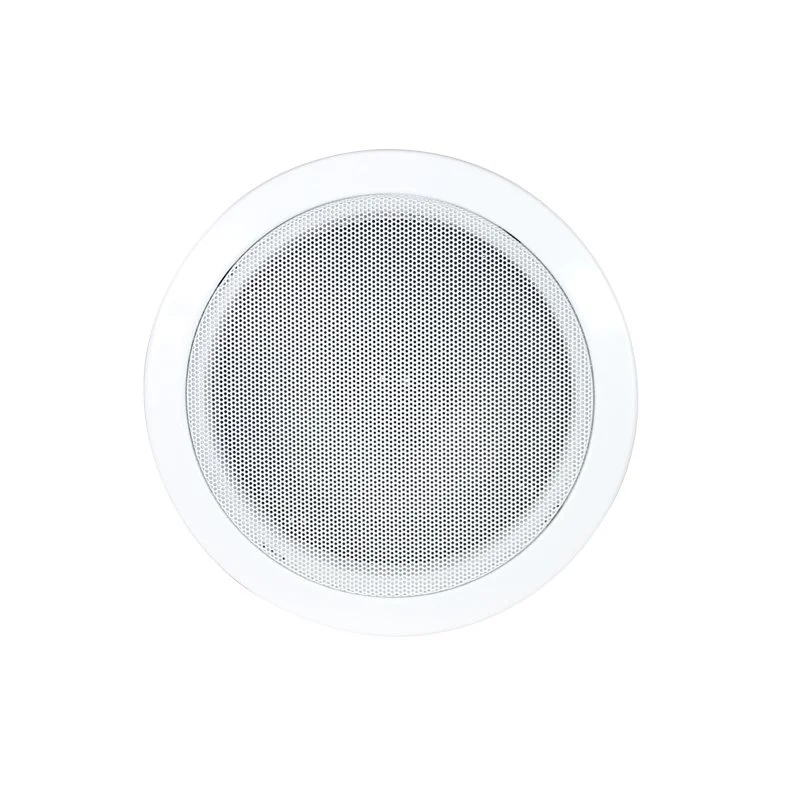

Clever Acoustics CS 56F 100V 5" 6W Ceiling Speaker +FD

£20.00

Ceiling mounted loudspeakers ideal for the playback of music and speech reinforcement where audio quality is important. The CS F series utilise a coaxial design complete with HF tweeter for crystal clear high tones. The loudspeakers feature a full fire dome and ceramic connector block suitable for installations requiring fire resistant specification.(During a fire, the ceiling cavity can allow fire or smoke to spread throughout a building. To inhibit fire entering the cavity via the ceiling loudspeaker a suitable product should chosen for installation such as the Clever Acoustics CS 56F.)

Ceiling mounted loudspeakers ideal for the playback of music and speech reinforcement where audio quality is important. The CS F series utilise a coaxial design complete with HF tweeter for crystal clear high tones. The loudspeakers feature a full fire dome and ceramic connector block suitable for installations requiring fire resistant specification.(During a fire, the ceiling cavity can allow fire or smoke to spread throughout a building. To inhibit fire entering the cavity via the ceiling loudspeaker a suitable product should chosen for installation such as the Clever Acoustics CS 56F.)

    • 3 year warranty

    • Coaxial, 2-way design delivers wide frequency response

    • Multiple power taps

    • Ceramic terminal block connection

    • Metal grille, baffle and fire dome

    • Spring clip mounting with “dome first” fast installation system

    • Supplied with template to aid installation

    • Input: 100V, 70V

    • Power taps @ 100V: 0.38W, 0.75W, 1.5W, 3W, 6W

    • Power taps @ 70V: 0.19W, 0.38W, 0.75W, 1.5W, 3W

    • Impedance: 26KΩ, 13KΩ, 6.7KΩ, 3.3KΩ, 1.7KΩ

    • Sensitivity (1W/1m): 92dB (±3dB)

    • Maximum SPL (Rated W/1m): 100dB

    • Frequency response: 130Hz-15kHz

    • Drivers: 5" LF, 1.5" HF

    • Connections: Ceramic terminal block

    • Cutout: 157mmØ

    • Mounting depth: 115mm

    • Dimensions: 125 x 180mmØ

    • Weight: 1.2kg

  • Barcode / EAN - 0723175521179

    Packed Dims (H x W x D) - 15.3 x 25.1 x 25cm

    Packed Weight - 1.5kg

    Outer Carton Quantity - 8

    Commodity Code - 8518290090

    Country Of Origin - CN
