Robolights IWB End Terminal Box with DIN Rail, Grey (EB/DR/G)

£48.00

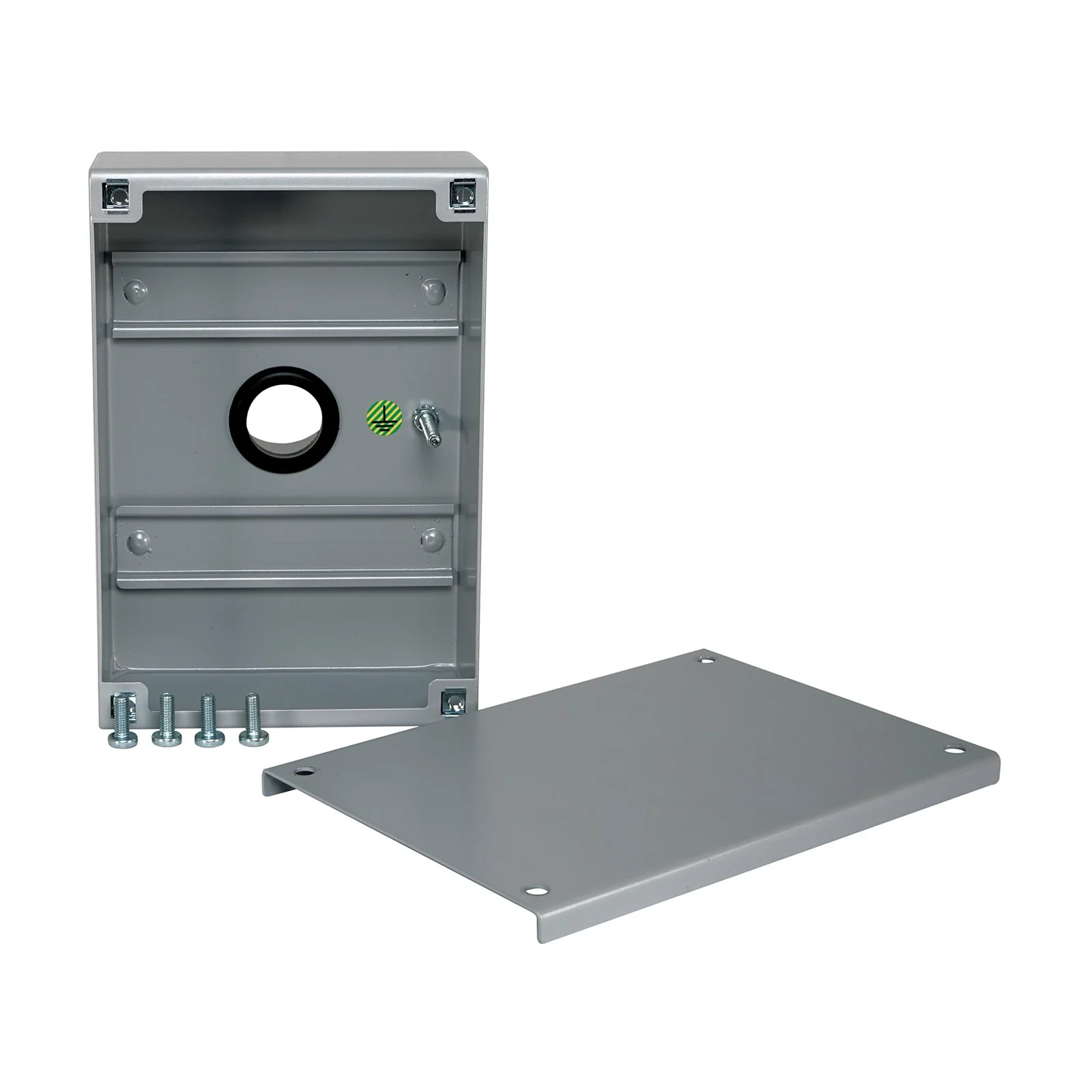

This end box is designed to fit onto the end of an internally wired lighting bar for neat and easy termination. This end box is manufactured from 1.5mm mild steel and is finished in grey powder coat. It is supplied complete with two rows of DIN rail, M6 earth stud and has an internal tube clamp to attach the box to 48mm OD tube. Available in black or grey finish.

This end box is designed to fit onto the end of an internally wired lighting bar for neat and easy termination. This end box is manufactured from 1.5mm mild steel and is finished in grey powder coat. It is supplied complete with two rows of DIN rail, M6 earth stud and has an internal tube clamp to attach the box to 48mm OD tube. Available in black or grey finish.

  • - Enclosure material 18 SWG mild steel

    - Tube clamp accepts 48.3mm OD tube

    - Durable powder coat finish

    - Central M6 x 50mm earth stud

    - Two 140mm DIN rail (top hat style)

  • - Dimensions 150mm x 220mm x 75mm

    - Weight 1.6kg (complete)

  • Height (cm) 0.0

    Width (cm) 0.0

    Depth (cm) 0.0

    Weight (kg) 0.0

    Barcode 0702338066412

    Qty In Outer 0

  • DATASHEET
